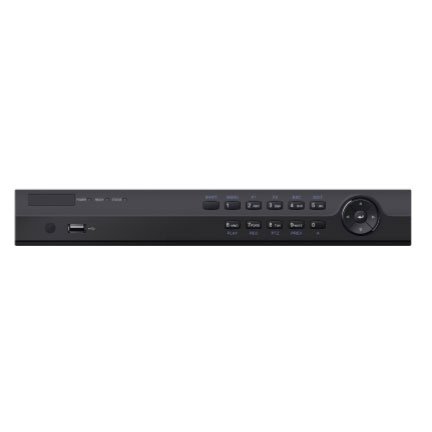

4K 16CH IP Network Video Recorder - 16 Built in PoE Port Up to 12MP Resolution Recording Compatible with Hikvision NVR DS-7616NI-K2/16P NVR
4K 16CH IP Network Video Recorder - 16 Built in PoE Port Up to 12MP Resolution Recording Compatible with Hikvision NVR DS-7616NI-K2/16P NVR
Regular price
$335.00 USD
Regular price
$399.00 USD
Sale price
$335.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
16 Channel & 16 POE Network Video Recorder
- Up to 16Ch. IP cameras input
- 160 Mbps Bit rate input Max and 160 Mbps Bit rate output Max
- Third-party network cameras supported
- Up to 12MP resolution recording
- Independent VGA and HDMI output
- VGA output up to 1080p@60Hz, HDMI output up to 4K@30Hz
- 2 SATA HDD interface up to 12TB each
- 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
***Hard drive NOT included***
| Specifications | ||
|---|---|---|
| Model Number | HESNR33P6-16 | |
| Video Compression | H.265 / H.264+ / H.264 / MJPEG | |
| IP Video Input | 16 Ch. (160 Mbps Max input) | |
| Video Output | 1 HDMI, 1 VGA | |
| Audio Input/Output | 1/1 | |
| Two-way Audio | 1/1 | |
| Real-time recording resolution | Up to 12 MP | |
| HDMI Output Resolution | 4K, 3840×2160@30Hz, – 2K, 1920×1080@60Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
|
| VGA Output Resolution | 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz | |
| Synchronous Playback | 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) | |
| Network Interface | 1 RJ45 10M/100M/1000M | |
| PoE Network Interfaces/Built-in switch | 16 independent 10/100 Mbps PoE network interfaces | |
| Internal SATA | 2 SATA interfaces (up to 12TB each) | |
| Alarm I/O | 4/1 | |
| USB interface | 1 x USB2.0, 1 x USB 3.0 | |
| Operation Temperature | -10 °C ~ +55 °C | |
| Chassis | 385mm chasis | |
| Dimension | 15.2″W x 12.4″D x 2.0″H | |
| Power Supply | 100 ~ 240VAC | |
| Weight | 6.6 lbs |
